In an era where precise timing is crucial across various networks, the role of the Precision Time Protocol (PTP) cannot be overstated. PTP is a cornerstone in ensuring ultra-accurate time distribution within a network, effectively aligning all participating devices to a single time source. Originally defined by the IEEE 1588 standard, PTP has become increasingly important in environments demanding high precision and synchronization, such as telecommunications, finance, and broadcasting.
This educational piece offers a window into the core of time synchronization, examining the IEEE 1588 standard and its critical role in implementing PTP. Understanding this standard is key to grasping how a PTP Grandmaster Clock acts as the heart of a synchronized network, maintaining vital precision across interconnected systems and supporting operations that depend on the minutia of time.
Essential Aspects of Network Synchronization and Time Distribution
Network synchronization plays a pivotal role in maintaining the integrity and efficiency of modern digital communication systems. Synchronized time ensures that transactions, operations, and data exchanges across a network occur smoothly and with reduced errors. The need for precise timing is paramount in industries such as telecommunications, finance, broadcasting, and power grids, where milliseconds can make a significant difference.
Methods of Time Distribution in Networks
In the realm of time synchronization, there exist multiple methodologies to ensure that network devices are on the same temporal page. The most common methods include:
- Network Time Protocol (NTP), which is widely used for general time synchronization over packet-switched, variable-latency networks.
- IEEE 1588 Precision Time Protocol (PTP), which provides higher precision by accounting for and minimizing network-induced variations.
- GPS-based time distribution, which leverages the global positioning system to provide a reference clock for networked devices.
Each of these methods has its applications, with PTP being favored when sub-microsecond accuracy is required, making it the protocol of choice for mission-critical applications.
Challenges in Achieving Synchronization Accuracy
Despite the availability of advanced technologies, achieving high levels of synchronization accuracy is fraught with challenges. These include:
- Network latency variations, which can introduce timing errors.
- Packet delay variation (jitter) that can unpredictably affect the precision of time-stamping.
- External factors such as temperature fluctuations and electromagnetic interference impacting the stability of timing sources.
Addressing these challenges often necessitates the adoption of a hierarchical clock system, as defined in PTP, where a designated PTP Grandmaster Clock provides the primary time reference. Accurate time distribution and synchronization across the network become achievable by carefully managing these and other influencing factors.
The Hierarchy of Clocks: From Grandmaster Clock to Slave Clock
The Precision Time Protocol (PTP) defined by the IEEE 1588 standard establishes a network of clocks that work together to provide the accurate timing necessary for time-sensitive applications. At any given moment within a PTP-enabled network, clocks play a specific role, with each one designated as either a master or slave. This creates a structured hierarchy crucial for maintaining synchronization across complex systems.
Explanation of the Clock Hierarchy in PTP
In PTP, the Grandmaster clock is the top-tier timekeeper, serving as the primary reference. High precision and stability are the hallmarks of a Grandmaster, as it provides the authoritative time stamps that all other clocks in the network align to. Below the Grandmaster are one or several levels of master clocks, which disseminate the synchronization information to lower strata of the network.
The Function of Slave Clocks in the Time Synchronization Process
At the lowest tier of the hierarchy lie the slave clocks. These clocks rely on the time stamps from the master clocks—ultimately tracing back to the Grandmaster clock—to correct their own time. The goal is to minimize any deviation from the true time, ensuring that every peripheral device stays in tight synchrony with the network's main time source.
Introduction to the Best Master Clock Algorithm
A critical component of the PTP system is the Best Master Clock Algorithm (BMCA). The BMCA automatically determines which clock should take precedence as the Grandmaster. It evaluates factors such as clock accuracy, network distance, and variance to elect the most suitable clock to lead the hierarchy. Should the current Grandmaster become unstable or unavailable, the BMCA re-evaluates available master clocks and selects a new leader, maintaining the highest level of precision and consistency for the network's timing needs.
- Accuracy: Clocks are assessed for their timekeeping precision.
- Network distance: The algorithm accounts for the proximity of clocks to reduce latency in time distribution.
- Variance: The stability of a clock's timekeeping is measured to ensure reliability.

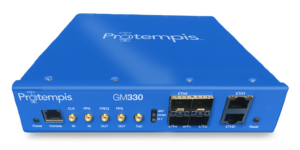

The Grandmaster Clock: Defining Precision and Reliability
PTP Grandmaster Clocks are the cornerstone of network synchronization, crucial for maintaining accurate time across various devices within a network. Owning the role of the primary reference, these clocks deliver the absolute time with remarkable precision, which is essential for a multitude of high-precision industries.
Role and Responsibilities of a Grandmaster Clock
As the name suggests, a Grandmaster Clock bears the responsibility of generating and disseminating the reference time to all other clocks within a network. It ensures synchronization is maintained to a high degree of accuracy, enabling events and operations to occur concurrently across different systems. This synchronicity is imperative for applications such as financial trading, telecommunications, and broadcast media.
Criteria for Grandmaster Clock Selection
Grandmaster Clock as an Ideal Solution for High-Precision Industries
High-precision industries require synchronization at the nanosecond level to ensure the reliability and accuracy of critical operations. A PTP Grandmaster Clock is pivotal in scenarios where even a microsecond deviation can lead to significant consequences, such as in aerospace, financial trading, and data centers. Its ability to precisely manage the distribution of time makes it an indispensable component in the infrastructure of these industries.
Ensuring Network Efficiency with Timing and Latency
In industrial systems and communication networks, efficiency hinges on the ability to maintain precise timing and minimal latency. The role of the PTP Grandmaster Clock is pivotal in achieving this synergy, as it acts as the reference source for all timing-related activities within the network. Understanding how to optimize both timing and latency is essential for the smooth operation of sophisticated technologies that rely on synchronized data exchange.
Timing and Latency Requirements in Industrial Systems
Industrial systems, particularly those involved in automation and manufacturing processes, demand strict timing discipline. These systems operate on a real-time basis where milliseconds can impact the outcome of an entire operation. Latency, the delay before a transfer of data begins following an instruction for its transfer, must be kept to a minimum to ensure that actions occur in a synchronized fashion. PTP Grandmaster Clocks serve as the authoritative time source, enabling precise coordination between distributed processes and machinery.
Impact of Timing Precision on the Performance of Communication Networks
The performance of communication networks is heavily dependent on the accuracy of their internal clocks. In scenarios ranging from financial trading to networked control systems, the precision of timing directly affects the integrity of transmitted data and the decision-making processes that rely upon it. Small deviations can lead to data collisions, misalignment of time-sensitive actions, and can even compromise the security of the network. By employing a PTP Grandmaster Clock, organizations are able to minimize these risks, ensure data packets are accurately timestamped, and operations are executed at their designated times. Consequently, this enhances the overall performance and reliability of the network.
- The PTP Grandmaster Clock ensures all devices within the network are synchronized to the same time source.
- Latency is reduced by streamlining time-critical operations and eliminating discrepancies.
- Accurate timing facilitates the scheduling and coordination of tasks across the network, improving productivity and reducing errors.
As networks become more complex and the demand for data-driven decision making increases, the importance of a reliable PTP Grandmaster Clock cannot be overstated. Adopting such precise timing mechanisms directly translates into greater network efficiency, bolstering both throughput and quality of service.
Incorporating PTP Profiles for Tailored Synchronization
Precision Time Protocol (PTP), as outlined in the IEEE 1588 standard, provides the structure for distributing accurate time across a network. However, to fine-tune this process for specific industry needs, various PTP profiles have been developed. These profiles customize the protocol parameters to ensure that the time synchronization is aligned with the demands of different applications.
Overview of PTP Profiles
PTP profiles are essentially sets of modifications to the base standard of IEEE 1588. They define presets for message intervals, timeouts, and other protocol characteristics to optimize performance in a particular scenario. By applying these profiles, organizations can enhance the protocol to be more compatible with their operational requirements and ensure optimal synchronization accuracy.
Difference between Telecom Profile, Default Profile, and Other Profiles
Each PTP profile is designed for a specific context. For example, the Telecom Profile, known as ITU-T G.8265.1, is optimized for telecommunication networks, improving frequency and phase synchronization. The Default Profile, sometimes called IEEE 1588v2, is suitable for general use with no specialized customizations. Other profiles, such as those designed for power utility networks or broadcast industries, focus on specific needs like phase alignment and resilience to network asymmetries.
Selecting the Appropriate Profile for Different Industry Applications
The choice of a PTP profile is critical and should be informed by the unique synchronization requirements of the industry in question. For instance, the financial sector requires highly precise time-stamping for transaction logging, while broadcasting seeks seamless audio and video streams. Additionally, industrial automation systems need synchronized control across machines for precise operations. Selecting the appropriate PTP profile ensures that the implemented PTP Grandmaster Clock serves the industry's needs effectively, leading to enhanced productivity and compliance with industry standards.
- Telecommunications: ITU-T profiles for stringent phase and frequency accuracy.
- Broadcasting: SMPTE profile to harmonize audio and video equipment.
- Power Utilities: IEEE C37.238 for substation automation and grid stability.
- Finance: Custom profiles for market trading platforms with nanosecond precision.
The Backbone of Precision: Boundary and Transparent Clocks
Boundary clocks and transparent clocks are critical elements in the Precision Time Protocol (PTP) ecosystem, playing substantial roles in preserving time accuracy across complex network architectures. While often overshadowed by the PTP Grandmaster Clock, both boundary and transparent clocks are pivotal for attaining precise time synchronization.
Understanding Boundary Clocks
Boundary clocks serve as mediators in the PTP hierarchy, residing at various points within a network. Unlike the PTP Grandmaster Clock, which is the primary source of time within a network, boundary clocks have the capability to both receive accurate time from an upstream clock and provide it to downstream devices. They effectively reduce the number of direct connections to the grandmaster, thereby minimizing network congestion and the potential for synchronization errors.
The Role of Transparent Clocks in Reducing Latency
Transparent clocks take on a different but equally important role. Their primary function is to measure the time taken for PTP messages to pass through a network device. This residence time is then accounted for in the timing calculations, ensuring that the message's time information is corrected, which reduces synchronization latency. In essence, transparent clocks contribute to maintaining the precision of the PTP Grandmaster Clock's timing throughout the entire network, ensuring data packets have their timing adjusted to compensate for delays, increasing the accuracy of the system as a whole.
- A boundary clock acts as a normal clock and a time relay which re-synchronizes time-stamped PTP messages before passing them on, lessening the load on the grandmaster and improving overall system scalability.
- A transparent clock, on the other hand, modifies PTP messages as they traverse the device. It adds the time spent within the device to the PTP message so that the overall delay can be accurately taken into account by the receiver.
In summary, both boundary and transparent clocks form the backbone of precision in networks utilizing PTP. By managing and compensating for potential disruptions to timing accuracy, they ensure that the synchronization provided by the PTP Grandmaster Clock is propagated effectively and efficiently, securing the reliable operation of time-sensitive applications.
Implementing the Grandmaster Clock Through Hardware and Software
When it comes to the implementation of a PTP Grandmaster Clock, the choice between hardware and software solutions is pivotal for achieving the desired accuracy and reliability within a network. Below, we explore the vital considerations and advantages of both approaches in the synchronization hierarchy.
Hardware vs. Software Clock Implementation
Hardware-based PTP Grandmaster Clocks are physical devices designed with specialized, dedicated components that interact directly with the network infrastructure to provide precise timing. These hardware solutions offer superior accuracy due to less susceptibility to the latency variability found in general-purpose computing environments.
Software-based Grandmaster Clocks, meanwhile, are implemented on general-purpose servers or virtual machines. While typically more cost-effective and easier to deploy, they may experience greater time deviation due to the non-deterministic nature of the software processes, which can affect timing precision.
The Role of GNSS in Enhancing Accuracy
Global Navigation Satellite Systems (GNSS), such as GPS, GLONASS, or Galileo, are often integrated into hardware PTP Grandmaster Clocks to provide an external reference time source. GNSS signals contribute to a higher degree of accuracy, as they are less prone to drift and are not dependent on the local network's time distribution quality.
Criteria When Choosing a PTP Grandmaster Clock Product
Selecting the appropriate PTP Grandmaster Clock product involves several critical considerations:
- Performance: The clock's accuracy, stability, and holdover capabilities in the event of GNSS signal loss.
- Scalability: The ability to support the necessary number of slave clocks within the network.
- Security: Protective features against potential time synchronization attacks and vulnerabilities.
- Customization: Option for tailored PTP profiles to cater to specific industry requirements and compliance standards.
- Resilience: Design and redundancy features to ensure continuous operation under adverse conditions.
Ultimately, the implementation choice depends on the specific synchronization needs, budget constraints, and operational environment of the network in question. A strategic blend of hardware precision and software flexibility often represents the optimal approach to integrating a robust PTP Grandmaster Clock into your system's architecture.
PTP Grandmaster Clocks play a critical role in various industries by ensuring precise timing, which is crucial for the efficient and reliable operation of numerous systems. Let's explore their importance in the three industries you mentioned:
What industries use the PTP Grandmaster Clock?
Telecommunications: Seamless Data Transmission and Mobile Network Timing
- Network Synchronization: In telecommunications, especially with the advent of 5G, precise timing is crucial for coordinating data transmission across the network. PTP Grandmaster Clocks ensure that the data packets transmitted across the network are accurately timed and synchronized.
- Reducing Latency and Jitter: Accurate timing helps reduce latency and jitter, critical for high-speed data services, voice-over IP (VoIP), and streaming services.
- Enhancing Network Efficiency: Precise timing allows for efficient use of the radio spectrum and helps manage the handover of mobile signals between cell towers, ensuring seamless communication and data transfer.
Broadcasting: Synchronizing Video and Audio Streams
- Lip-Sync Accuracy: In broadcasting, synchronization of audio and video streams is vital to maintain lip-sync accuracy. PTP Grandmaster Clocks ensure that the audio and video frames are perfectly aligned.
- Coordination Across Multiple Sources: When multiple cameras and microphones are used, especially in live broadcasting, it's essential to synchronize these devices to avoid delays and mismatches in the final output.
- Standard Compliance: Broadcast standards often require precise timing for integrating streams in post-production and ensuring the streams are synchronized when broadcasted over different mediums.
Power Systems and Smart Grids: Enhancing Grid Reliability and Efficiency
- Grid Synchronization: In power systems, especially smart grids, precise timing is crucial for synchronizing the operations across the grid. This includes timing the opening and closing of circuit breakers and ensuring the phase alignment of AC waveforms.
- Fault Detection and Isolation: Accurate timing helps quickly identify and isolate faults on the grid, minimizing downtime and preventing widespread outages.
- Efficient Energy Distribution: In smart grids, timing is essential for managing demand-response systems and efficiently distributing power from various sources, including renewable energy sources. This ensures optimal utilization of resources and maintains the balance between supply and demand.
In summary, PTP Grandmaster Clocks provide the critical timing infrastructure needed in these industries to ensure precise synchronization, which is key to maintaining efficiency, quality, and reliability in their operations.
Selecting the Right PTP Grandmaster Clock for Your Network
An accurate and reliable timing solution is critical to network performance and synchronization. With an array of PTP Grandmaster Clocks available, it is essential to choose one that aligns perfectly with your network's unique requirements. This selection process can be daunting, but by understanding your network's size, the specific industry needs, and the required synchronization accuracy, you can make an informed decision that ensures efficiency and precision in your operations.
Steps to Choose the Best PTP Grandmaster Clock
When selecting a PTP Grandmaster Clock, it is necessary to follow a methodical approach:
- Assess the specific requirements of your industry and application.
- Consider the scalability of the solution to cater to future network expansions.
- Ensure the selected clock is compatible with existing PTP profiles and network infrastructure.
- Seek out devices with demonstrated reliability and robustness in similar deployment scenarios.
- Review performance benchmarks like jitter and wander, which affect synchronization accuracy.
Key Factors to Consider
Selecting the optimal PTP Grandmaster Clock for your network demands attention to several critical factors:
- Device Capabilities: Evaluate the precision and stability features of the clock, and confirm whether it supports the necessary PTP profiles.
- Network Size: Large-scale networks might require a more sophisticated clock with enhanced capabilities for maintaining accurate time throughout the network.
- Required Synchronization Accuracy: Define the level of accuracy needed for your operations. For some, microsecond precision might be adequate, while others may need nanosecond accuracy.
By carefully considering these factors, alongside the support and services provided by the manufacturer, you can confidently select a PTP Grandmaster Clock that not only meets but exceeds your network's synchronization expectations.
