LTMG408 - 2X Global 5G LTE, WIFI, GNSS)
LTMG408 - 2X Global 5G LTE, WIFI, GNSS) - Combo Antennas is backordered and will ship as soon as it is back in stock.
Click here to inquire about pricing or to become an authorized reseller of this product.

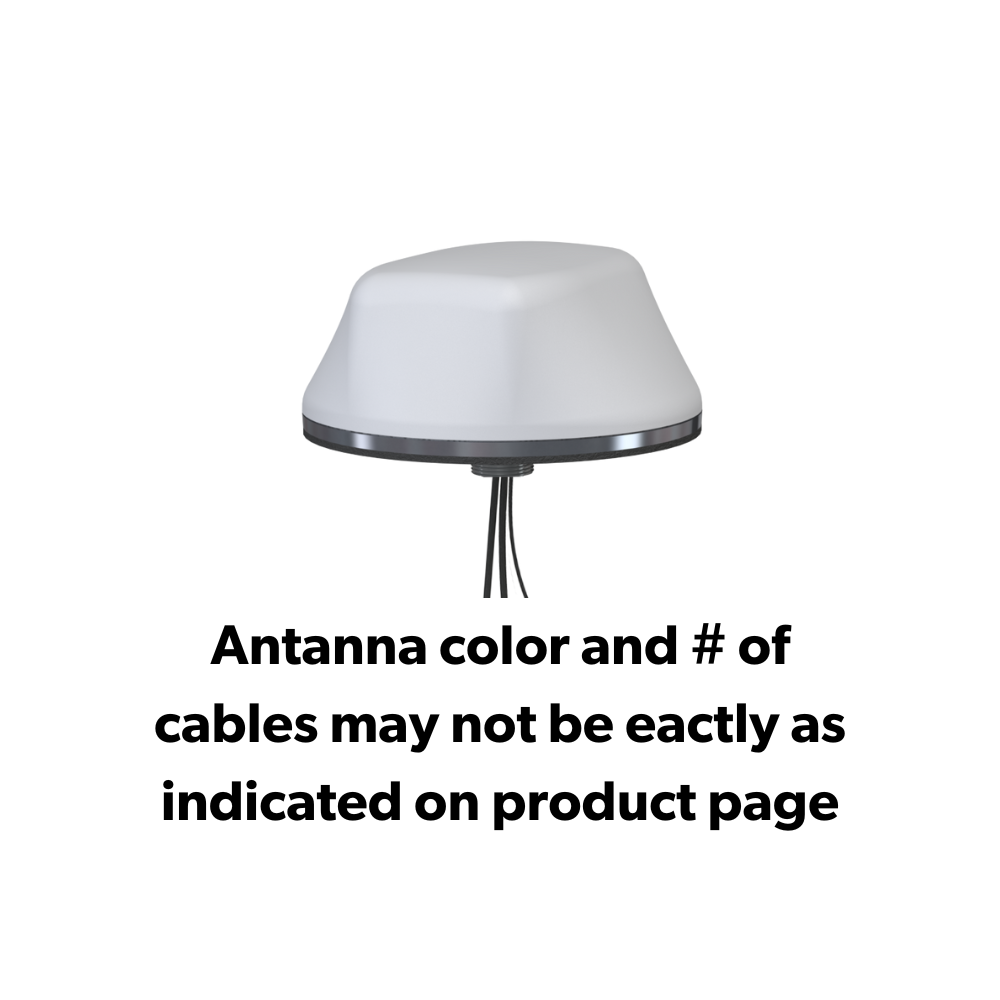

The 4-cable LTMG408 (2x Global 5G LTE, WiFi, GNSS) antennas include two Global 5G LTE antennas, one WiFi antenna and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Cellular, but not for the WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the newCBRS(Citizen Band Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG408 series antennas take up significantly less space than multiple antennas.
The antenna is available in either surface-mount or mag-mount models. SpecifyMLTMG408for the mag-mount model.
To have a GPS antenna instead of a GNSS antenna, specifyLTM408(2x Global 5G LTE, WiFi, GNSS).
