Mobile Mark's LTMWG 900 Series Dual Carrier Multiband Antenna addresses the growing demand for comprehensive antenna solutions in fleet management, covering the entire frequency spectrum from 600 to 7200 MHz. This range enables connectivity to current and future cellular frequency bands up to 7.2 GHz.
Comprising up to 11 cables, the LTMWG 900 Series is well-suited for dual-carrier modems featuring two pairs of LTE MIMO elements, with one pair dedicated to each carrier. These systems provide cellular carrier backup and incorporate up to 6 WiFi 6E elements for enhanced throughput in advanced WiFi processors.
Notably, the antenna spans all global cellular bands, encompassing the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz in the United States.

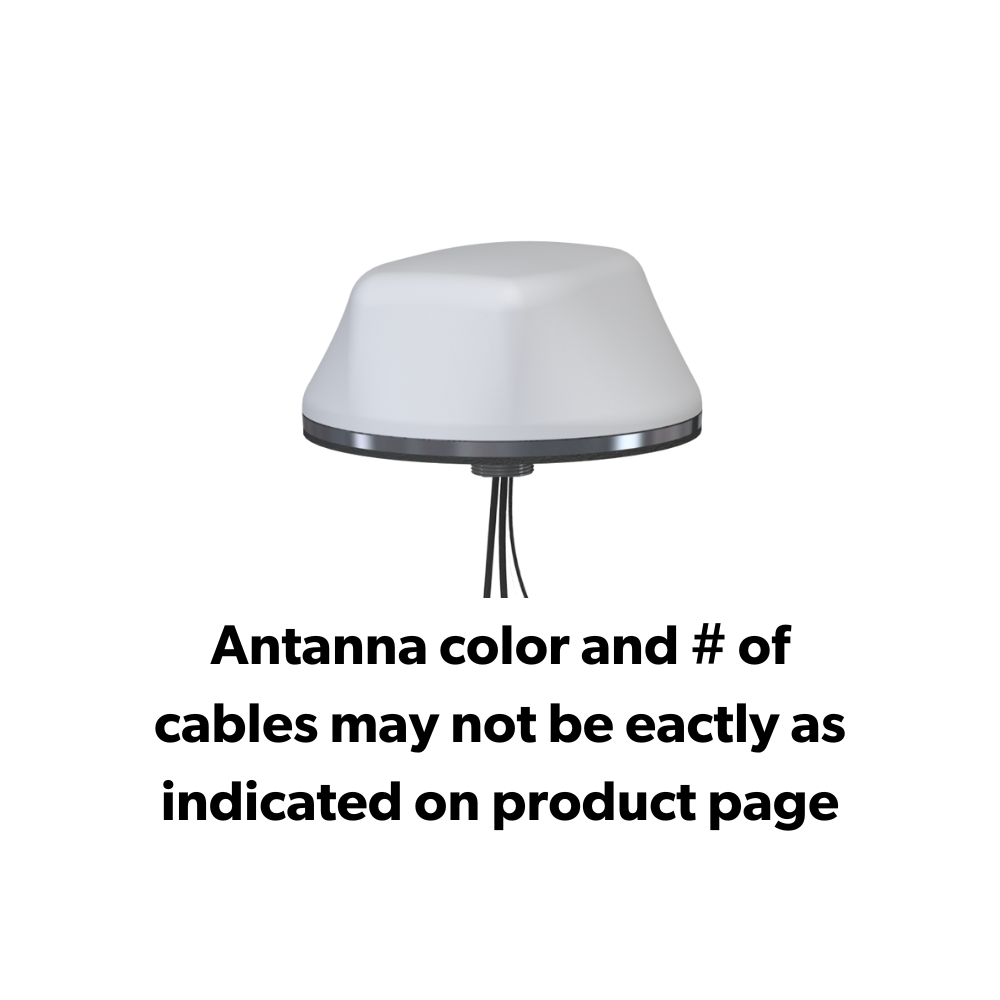

With a diameter of 5.5 inches (140 mm) and a low profile of 2.38 inches (60.4 mm), the LTMWG 900 Series minimizes space requirements compared to multiple antennas. It consistently includes 4x 5G Cellular for dual-carrier coverage, though customization allows for a configuration with fewer WiFi 6E elements as needed:
LTMWG946: 4x 5G/LTE, 6x WiFi 6E, 1x GNSS
LTMWG945: 4x 5G/LTE, 5x WiFi 6E, 1x GNSS
LTMWG944: 4x 5G/LTE, 4x WiFi 6E, 1x GNSS
LTMWG943: 4x 5G/LTE, 3x WiFi 6E, 1x GNSS
LTMWG942: 4x 5G/LTE, 2x WiFi 6E, 1x GNSS
LTMWG941: 4x 5G/LTE, 1x WiFi 6E, 1x GNSS
LTMWG940: 4x 5G/LTE, 1x GNSS
