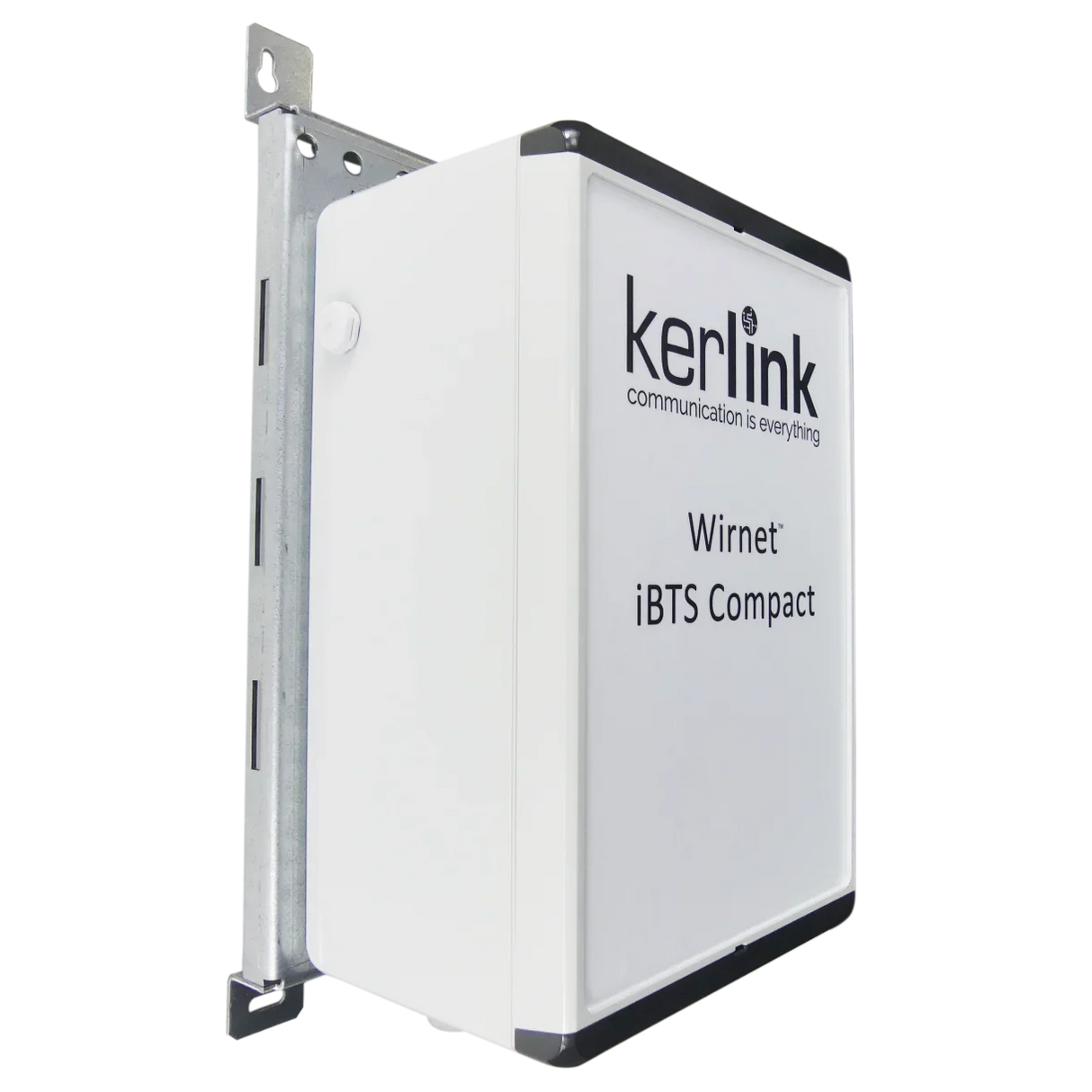

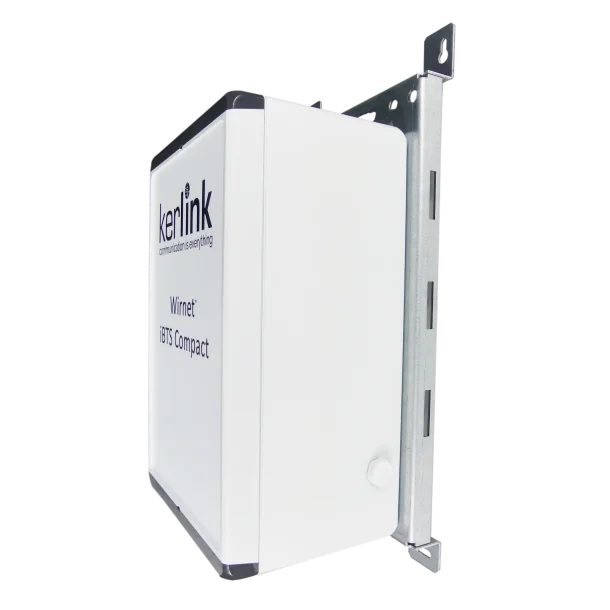

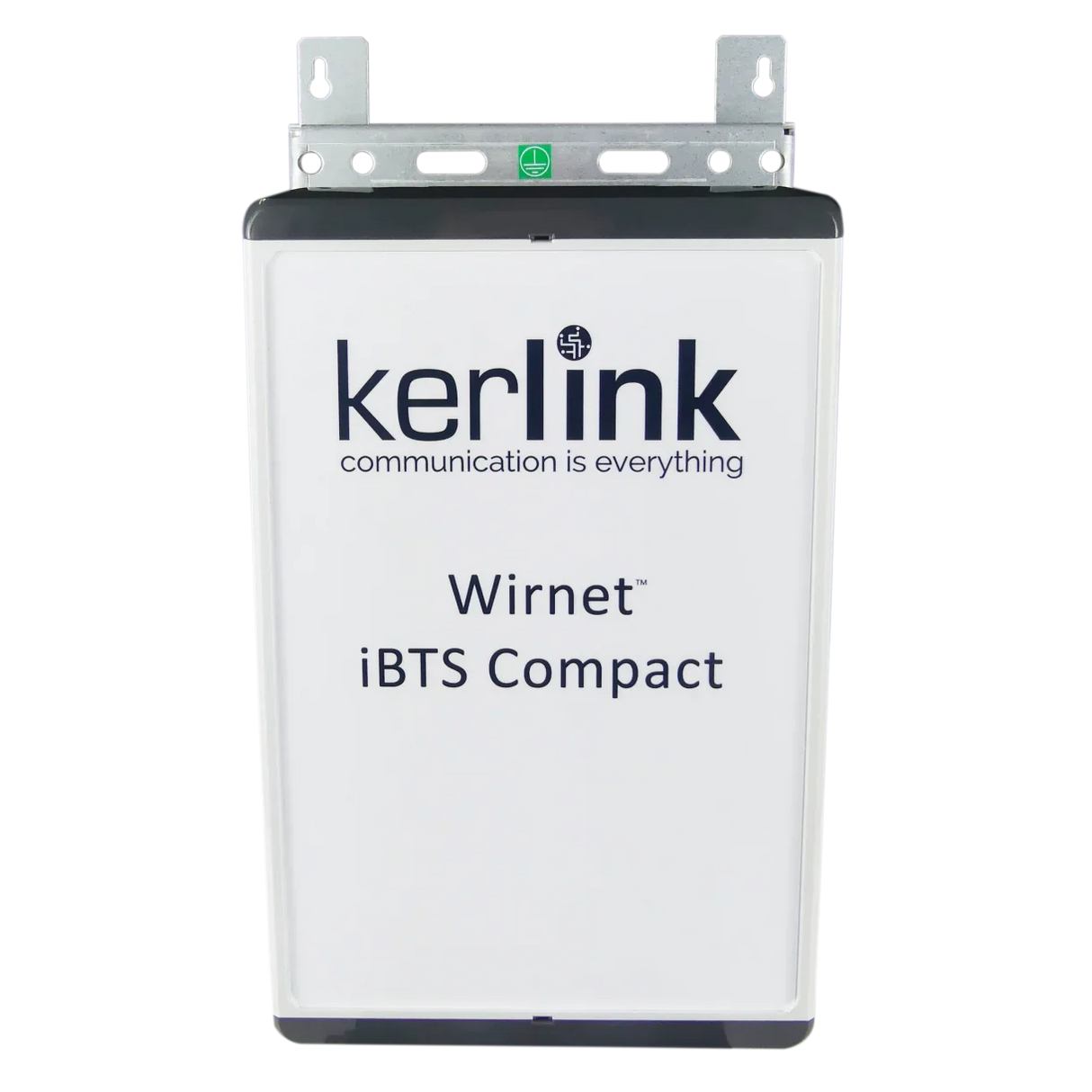

Kerlink iBTS Compact 16CH
Looking to buy more than 10 units of the Kerlink iBTS Compact 16CH? Contact sales@novotech.com or call 1-800-268-8628 for volume pricing.
Kerlink iBTS Compact 16CH - Kerlink / LoRaWAN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kerlink iBTS Compact 16CH
Kerlink Wirnet iBTS – Industrial Outdoor LoRaWAN® Gateways for Scalable IoT Networks
The Kerlink Wirnet® iBTS series offers rugged, high-performance outdoor LoRaWAN® gateways designed to power smart IoT networks at scale. Built with carrier-grade quality, these gateways combine powerful processing, a secure design, and advanced remote management capabilities — making them easy to deploy and operate, even for users without telecom expertise.
When paired with Kerlink’s Wanesy™ Management Plane, the Wirnet iBTS gateways provide real-time network performance monitoring and diagnostics, ensuring maximum stability, availability, and reliability.
For those seeking a turnkey, space-saving solution, the Wirnet iBTS Compact model offers a lightweight form factor, integrated mono or dual-WAN backhaul, and built-in antennas for GPS and cellular connectivity (2G/3G/4G). This compact design simplifies installation without sacrificing performance.
Fully compatible with LoRa® native sensor geolocation, the Wirnet iBTS range delivers the performance, flexibility, and operational efficiency needed for large public and private IoT deployments.
Strengths
High performance, reliability & future-proof
• Semtech Reference Design v2,
• Built-in high rejection filters,
Secure HW and SW architectures
• SecureBoot (Signed firmware),
• SecureStorage (keys and certificates in secured area) using ProvenCore solution,
• Secured links and backhaul protection (OpenVPN/IPsec),
• Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).
Technical features
• Sniffer for LBT (Listen Before Talk),
• Rx Sensitivity: -141 dBm (SF12),
• TX Power: configurable from 5dBm to 30dBm,
• Range -40°C +60°C, (for gateway only, without power supply),
• Humidity: 5% to 95%,
• Out-band radio scanners to monitor the entire band to detect real load of the band (Spectrum analysis compliant),
• Backup batteries to allow the clean shut down of applications in case of power cut,
• Power:
– Power Over Ethernet 30W for Compact version (accessory),
– Power Over Ethernet 60W for Standard version (accessory),
– Power Over Ethernet 48V DC class 4 (accessory),
– DC power supply (ex : solar panel use) : 11 to 56V DC (accessory),
– Power control : ignition detection, software OFF switching, ON/OFF button.
Kerlink Warranty and Technical Support
Novotech is the first line of technical support for all Kerlink Products we sell. If there is a problem, our support engineers can help you troubleshoot, and if we cannot get the device working the way it was intended, guide you through the Product RMA Process.
Kerlink offers a robust warranty against defects in material for 3 years from the date of delivery of their product. For more information, refer to the Kerlink general terms and conditions of sales and services (PDF), or the Kerlink End User License Agreement
Novotech has been working with LoRaWAN for many years and recognizes Novotech as a preferred Distributor in Canada and the United States of its range of LoRaWAN products.
Last reviewed June 17 2025 by Novotech Admin.
