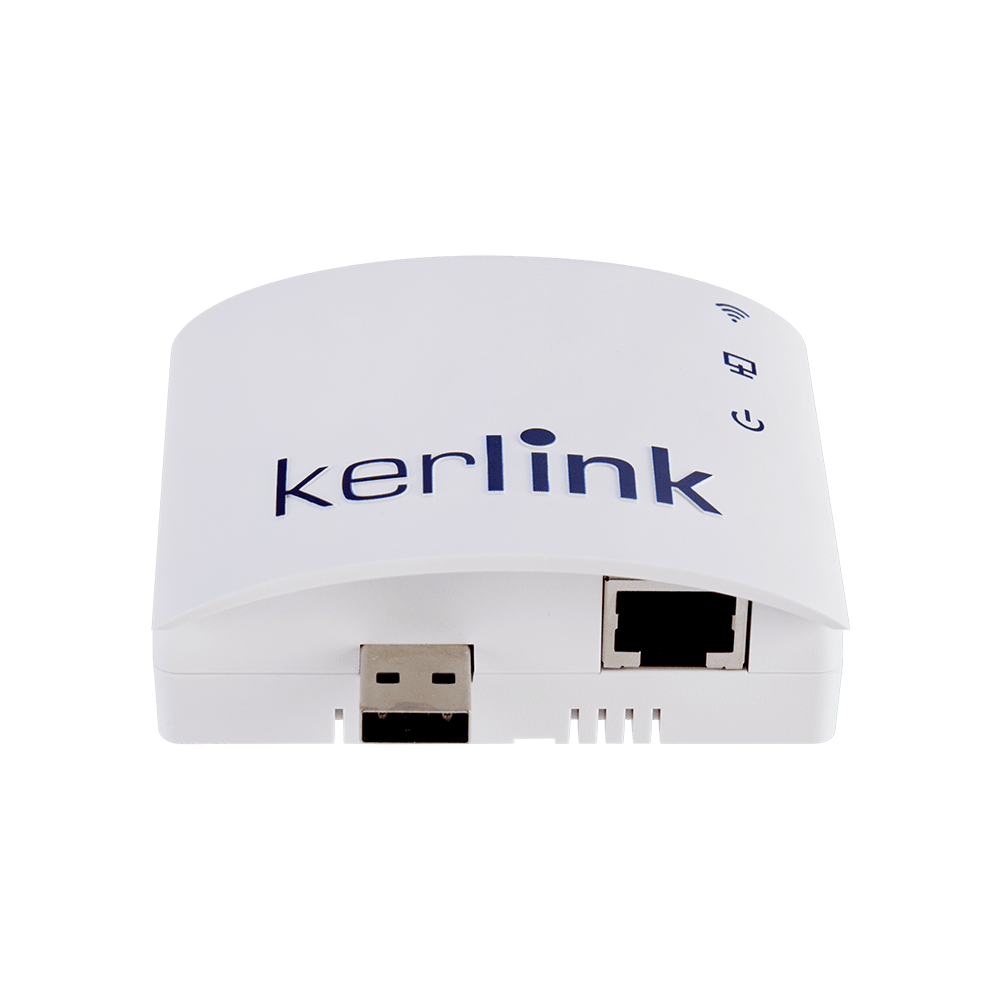

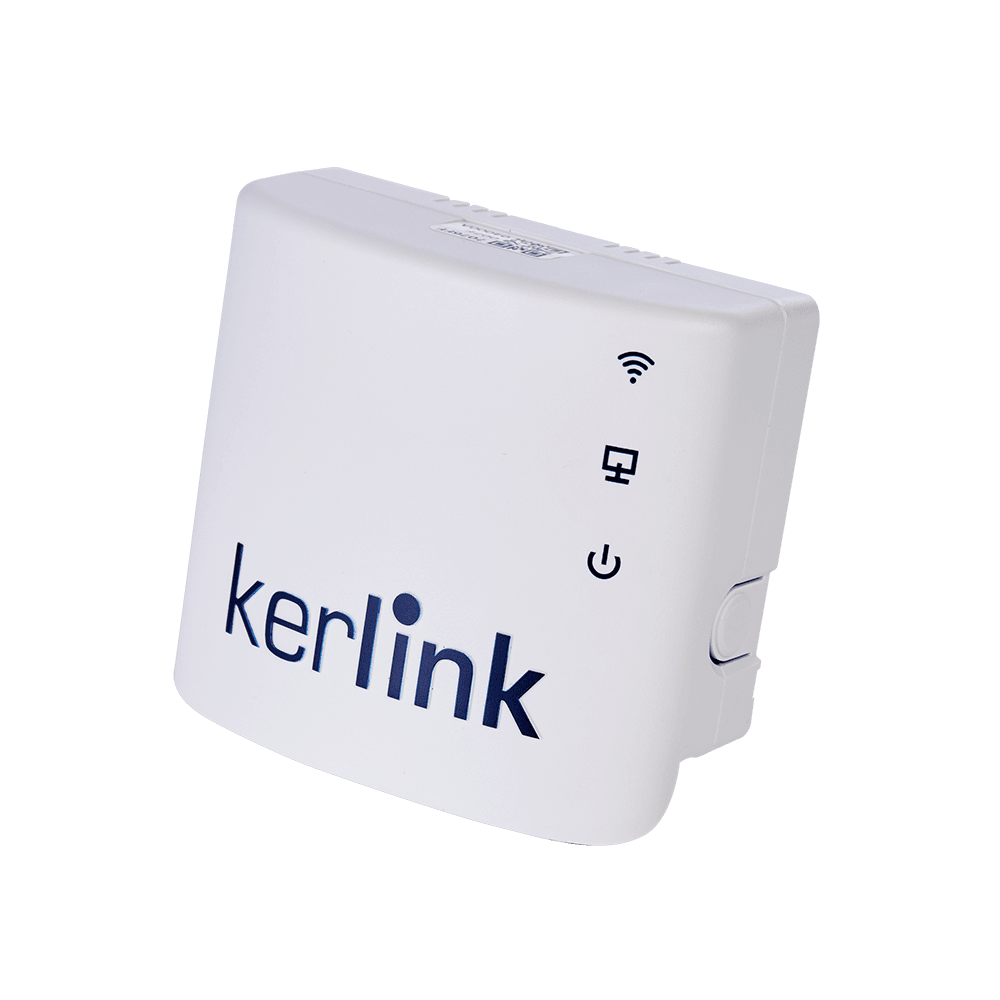

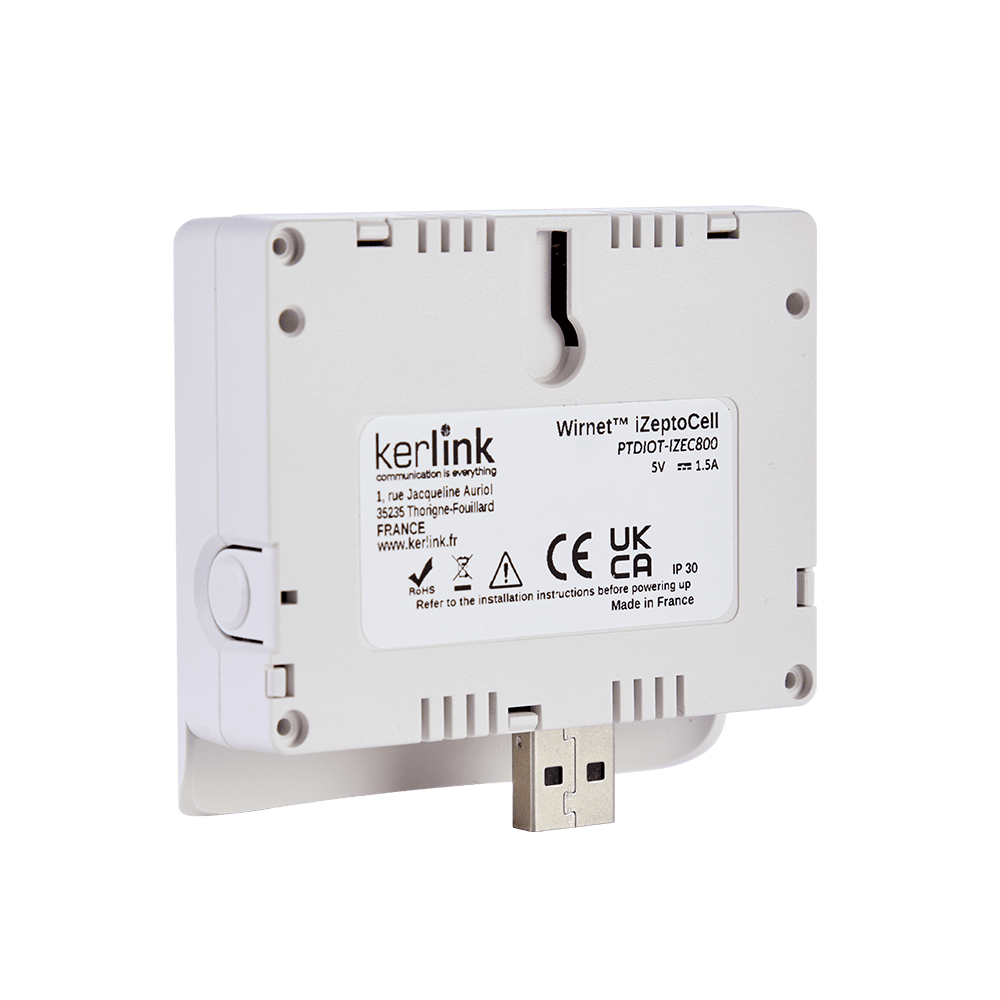

Kerlink Wirnet iZeptoCell Ethernet LoRaWAN Gateway
Looking to buy more than 10 units of the Kerlink Wirnet iZeptoCell Ethernet LoRaWAN Gateway? Contact sales@novotech.com or call 1-800-268-8628 for volume pricing.
Kerlink Wirnet iZeptoCell Ethernet LoRaWAN Gateway - Kerlink / LoRaWAN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kerlink Wirnet iZeptoCell Ethernet LoRaWAN Gateway
Wirnet iZeptoCell Ethernet – Plug-and-Play Indoor LoRaWAN® Gateway for Fixed Networks
The Kerlink Wirnet® iZeptoCell Ethernet is a compact indoor LoRaWAN® gateway purpose-built for reliable and efficient LPWAN connectivity over fixed access networks. It’s ideal for private or enterprise-grade deployments looking to support massive IoT with a stable Ethernet backhaul.
Designed to simplify indoor LoRaWAN deployments, this gateway tackles three critical challenges of massive IoT: managing thousands of devices, extending coverage to hard-to-reach locations (like deep indoor spaces), and transferring frequent small data packets with low latency.
Thanks to its PoE splitter compatibility, multi-blade AC-DC adapter, and USB power options, the Wirnet iZeptoCell Ethernet ensures flexible installation in a wide range of environments. It also features zero-touch provisioning for easy plug-and-play setup—no telecom expertise required.
With a fixed Ethernet backhaul and built-in support for native LoRa® geolocation, this model is a smart choice for budget-conscious deployments needing dependable indoor IoT coverage.
Strengths
High performance, reliability & robustness
- Semtech Sx1302 CoreCell Reference Design,
- Integrated LoRa antenna,
- Built-in high rejection filters,
- Low power consumption
Secure hardware and software architectures
- SecureBoot (Signed firmware),
- SecureStorage (keys and certificates in secured area) using ProvenCore solution,
- Secured links and backhaul protection (OpenVPN/IPsec),
- Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).
Technical features
- Supported unlicensed bands: 863-870MHz (EMEA, India), 902-928MHz (North America),
- Supported LoRaWAN regional parameters: EU863-870, IN865-867, RU864-870, US902-928,
- 8 x 8 packets detectors, 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) + 1ch TX,
- LoRa performance:
- Rx Sensitivity: -140 dBm (SF12BW125),
- Tx conducted power: configurable from 5dBm to 27dBm
- Maximum EIRP: 28dBm
- Backhaul:
- Ethernet version: Ethernet IEEE 802.3 10BASE-T, 100BASE-TX,
- Cellular version: LTE CatM1 / LTE CatNB2 (NB-IoT) / EGPRS / GPRS worldwide connectivity with remotely configurable eUICC,
- +23dBm output power (class 3),
- Bands 1, 2, 3, 5, 8, 12, 13, 18, 19 20, 25, 26, 27, 28, 66, 71, 85,
- EU RED, US FCC, CA ISED, BRAZIL ANATEL, JAPAN JRF & JTBL, CHINA CCC, Singapore INDA, Australia RCM, Taiwan NCC, Korea approvals,
- MFF2 eUICC remotely configurable,
- CPU: ARM Cortex A7 792MHz,
- DDRAM 256 MB,
- 4GB eMMC (2GB available for user)
- Power consumption: 1W nominal, 3.5W max
- Operating Temperature Range: 0°C +55°C (for gateway only, without power supply),
- Humidity: 5% to 95%,
- Size: 76 x 68.5 x 32 mm,
- Weight: 65g (gateway only); 250g (with packaging),
- Casing: IP30
Kerlink Warranty and Technical Support
Novotech is the first line of technical support for all Kerlink Products we sell. If there is a problem, our support engineers can help you troubleshoot, and if we cannot get the device working the way it was intended, guide you through the Product RMA Process.
Kerlink offers a robust warranty against defects in material for 3 years from the date of delivery of their product. For more information, refer to the Kerlink general terms and conditions of sales and services (PDF), or the Kerlink End User License Agreement
Novotech has been working with LoRaWAN for many years and recognizes Novotech as a preferred Distributor in Canada and the United States of its range of LoRaWAN products.
Last reviewed June 17 2025 by Novotech Admin.
