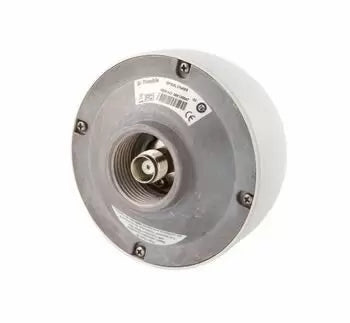

Protempis Bullet (Formerly Trimble Bullet) 720 Dual-Band Multi-GNSS Active Antenna

This product does not include the mounting hardware which can be found here:

Bullet 720 Mounting hardware

The Bullet 720 is a ruggedized weatherproof dual-band (L1 & L5) multi-GNSS active antenna. It is designed with a high out-of-band rejection filter and a built-in LNA to compensate for feedline losses and provide improved performance in harsh GNSS environments.

Additionally, Bullet 720 offers the benefits of using the higher power L5 signals (twice as much power as L1). With its greater bandwidth and advanced signal design, it lowers the risk of interference and improves multi-path protection. The dual-band capability of the Bullet 720 allows GNSS receivers to compensate for ionosphere errors allowing the reduction of the timing error under clear skies to a few nanoseconds.

When used with a dual-band GNSS receiver, such as Protempis's RES720TM module, the system offers unparalleled accuracy to meet the stringent synchronization needs of the next- generation networks in various industry verticals including 5G X-Haul, Smart Grid, Data Center, SATCOM, Calibration Services and Industrial Automation applications.

Key Features of the Bullet 720

• Dual Band (L1 and L5) Active Antenna with built-in LNA.
• Multi-constellation – GPS, GLONASS, Galileo & Beidou
• High Gain, low noise, high out-of-band rejection.
• Built-in lightning protection that meets/exceeds of handling IEC 61000-4 specifications.
• Ruggedized IP67 enclosure and supports extended temperature environments.
• Wide operating voltage range
• Multi-GNSS

The Bullet 720 is an active Antenna that supports GPS L1 & L5, Galileo E1 & E5, Beidou B1 & B2C, GLONASS G1 and IRNSS bands.

Anti-Jarring

The Bullet 720 antenna protects GNSS receivers from interference and intentional jamming. The filtering apparatus implemented in the antenna improves immunity to other RF signals for reliable performance in hostile RF jamming environments.

High Out-of-Band(OOB) Rejection

Bullet 720 provides class-leading out-of-band rejection characteristics of >75dB for L1 and > 65dB for L5 band. It provides significant improvements in performance and robustness in environments with high interference and multipath.

Click the links below to download the technical specifications / data sheets for this product:

Protempis Bullet 720 Antenna Technical Specifications / Data Sheet

Protempis Bullet 720 Antenna Mounting Hardware Technical Specifications / Data Sheet
