Digi  |  SKU: EX50-WXS6-GLB

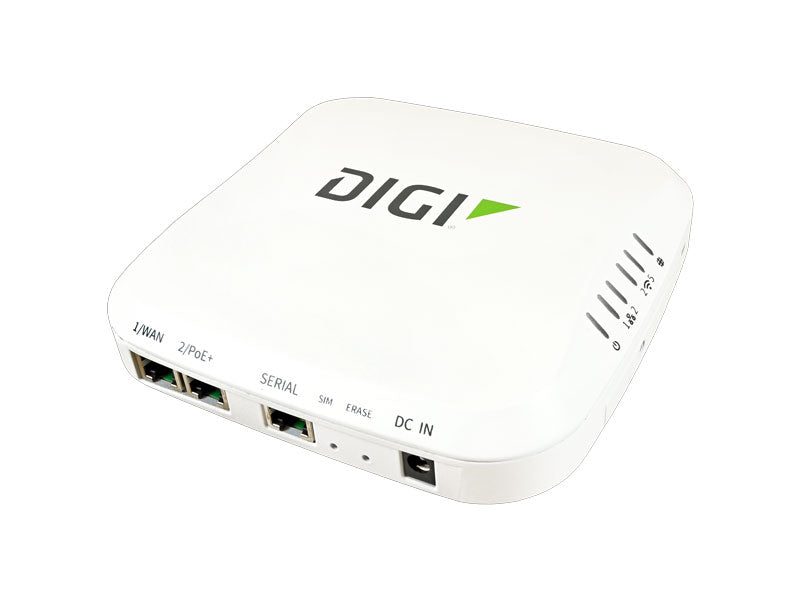

EX50-Global, 5G NR Sug-6 GHz, GNSS, WiFi, dual 2.5GbE access

Vendor

Click here to inquire about pricing or to become an authorized reseller of this product.

Share this product with somebody in your organization or a customer?

Global, 5G NR Sub-6 GHz with 4G/3G fallback, Wi-Fi 6 2x2 MIMO DBS, dual 2.5 GbE, RS-232, with accessories

  • Power — DC power supply
  • Mounting — mounting hardware
  • Cables — Ethernet and serial cables
  • Cellular connectivity:
    • 5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79
    • 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71
    • 3G HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    • Antenna connectors: (4) 50 Ω SMA (center pin: female)
    • SIM slots: (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate
  • Software and management:
    • ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂¬¨¬£Software: Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
    • Remote management: Digi Remote Manager®, security, management, updates, alerts, scheduling and intelligence
    • Local management: Web Interface (HTTPS); Command Line Interface (SSH, serial port)
  • Performance:
    • ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂¬¨¬£Ethernet throughput: 2.0 Gbps
    • Cellular throughput: 1.0 Gbps
    • IPsec VPN throughput: 500 Mbps
    • VPN tunnels: 10 tunnels
    • Client count: 50 clients (typical)
  • Processor:
    • ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂¬¨¬£Application processor: ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
    • Memory: 512 MB RAM, 512 MB flash
  • Ethernet: (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
  • Wi-Fi:
    • Radios: Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
    • Antennas: Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain
    • Security: Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise
    • Modes: (4) Wi-Fi access points; (2) Wi-Fi clients, (50) Wi-Fi users (typical)
  • Serial: (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network, software selectable
  • Operating temperature: -30° C to 60° C (-22° F to 140° F) with Power over Ethernet or industrial-rated power supply; 0° C to 40° C (32° F to 104° F) with included commercial-rated power supply
  • Approvals: visit www.digi.com/resources/certifications for latest certifications

Digi International produces 3 lines of cellular routers as follows:

Transportation Cellular Routers - names begin with TX

Industrial Cellular Routers - names begin with IX

Enterprise Cellular Routers - names begin with EX

Click for a deep dive analysis of the routers, you can access the Digi Cellular Router Comparison Chart.
