Kerlink 30 W Indoor Power-Over Ethernet (POE) Injector with AC Input

Key Features

• 10/100/1000Base-T/ 2.5GbE/5GbE NBASE-T
• PoE Output Power: 30 Watts over 4 pairs
• PoE Output Voltage: 55 VDC
• Electromagnetic Emission & Immunity: FCC Part 15, Class B
• Safety Approvals: UL/EN/IEC 60950-1, UL/EN/IEC 62368-1, KLK03506

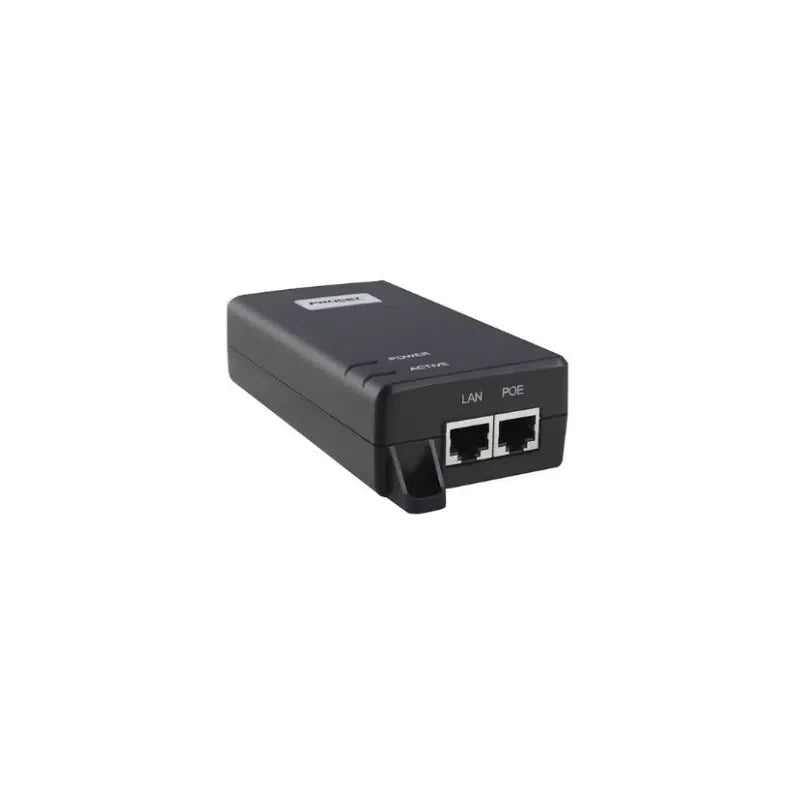

The Kerlink 30W PoE Injector is a single-port solution designed to remotely power Kerlink’s Wirnet® gateway range via an AC power supply. It features two RJ45 ports—one for Ethernet input and one for combined Ethernet output and power delivery.

Two diagnostic LEDs provide clear status updates: the "POWER" LED (green) indicates input power, while the "ACTIVE" LED displays output status (green for up to 15.4W, blue for outputs above 15.4W).

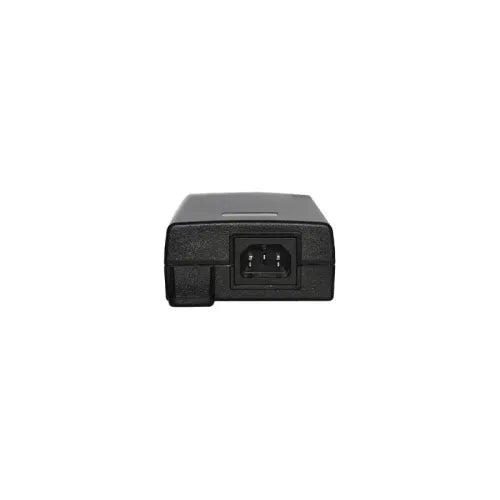

Delivering 55V DC at 0.55A, this PoE injector supports input voltages up to 30W across a wide temperature range of -40°C to 65°C. It also includes automatic detection and protection for non-standard Ethernet terminals. The unit comes with a Type B (US) power cable.

Kerlink Warranty and Technical Support

Novotech is the first line of technical support for all Kerlink Products we sell. If there is a problem, our support engineers can help you troubleshoot, and if we cannot get the device working the way it was intended, guide you through the Product RMA Process.

Kerlink offers a robust warranty against defects in material for 3 years from the date of delivery of their product. For more information, refer to the Kerlink general terms and conditions of sales and services (PDF), or the Kerlink End User License Agreement

Novotech has been working with LoRaWAN for many years and recognizes Novotech as a preferred Distributor in Canada and the United States of its range of LoRaWAN products.
