Poynting EPNT-2 | Cross-Polarised, High Gain, Uni-Directional 5G/LTE & Wi-Fi CPE Antenna

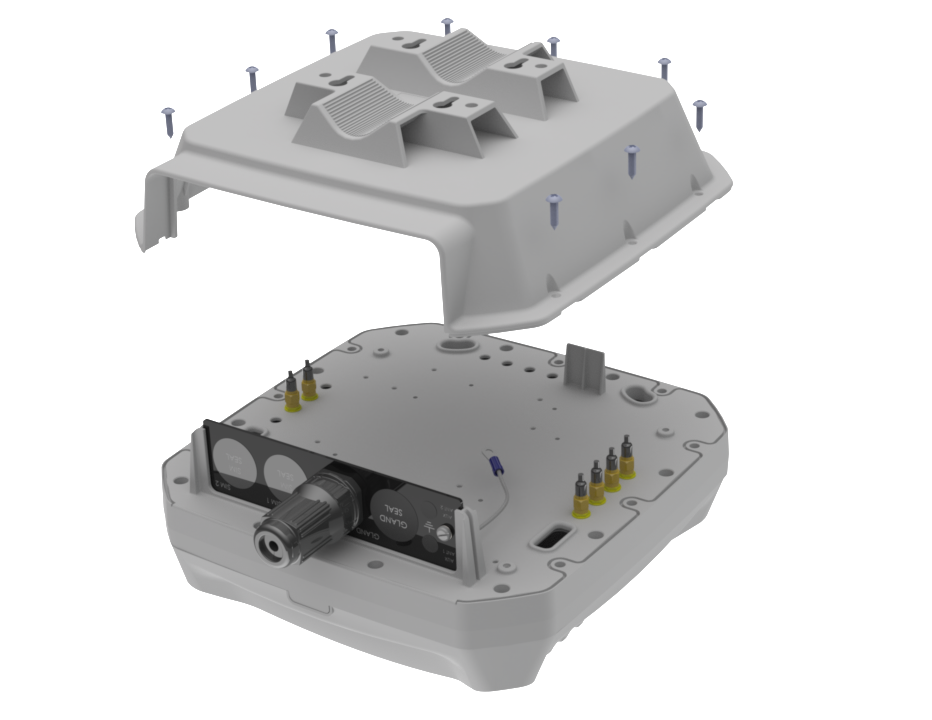

Poynting Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to fit a variety of router modules, transforming the antenna enclosure into high-performance Customer Premises Equipment (CPE). The EPNT-2 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.

Advanced AMC Technology: Incorporates Artificial Magnetic Conductor (AMC) technology from the XPOL-2-5G antenna for superior performance. Wideband Uni-Directional & Omni-Directional Antennas: Covers 617–960 MHz and 1710–4200 MHz, ideal for 4G & 5G implementations.

Optimised for 4x4 MIMO: Features four cross-polarised cellular antennas – two uni-directional antennas with 11 dBi peak gain and two omni-directional antennas with 5 dBi peak gain. Integrated Dual-Band Wi-Fi: Includes two omni-directional Wi-Fi antennas covering 2.4 GHz & 5–6 GHz for 2x2 MIMO performance.

Superior Connectivity & Data Throughput: The combination of a high-gain XPOL-2-5G antenna with a world-class router ensures outstanding wireless performance. Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.

The EPNT-2 is the perfect solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for superior connectivity and performance.

Key Features

• An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
• Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
• New advanced metamaterial technology
• Exceptional high gain performance over the main 4G/5G bands
• 2x2 MIMO dual-band 2.4 GHz and 5 – 7.2 GHz Wi-Fi antennas
• Cross-polarised antennas for improved performance
• IP65 weather/dust and vandal-resistant enclosure

Ideal Applications

• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer 5G/4G internet connectivity
• Industrial
• commercial 5G/4G deployment
• Urban
• rural household reception enhancement
• Agricultural
• farming 5G/4G data distribution

Frequency Band

This antenna operates in the 617 - 4200 MHz band.

Wi-Fi Standards

Wi-Fi 3 (802.11g)| Wi-Fi 4 (802.11n)| Wi-Fi 5 (802.11ac)| Wi-Fi 6 (802.11ax)| Wi-Fi 6E (802.11ax)
