Poynting MIMO-4-15 | 5-in-1 Transportation & Automotive Antenna
Poynting MIMO-4-15 | 5-in-1 Transportation & Automotive Antenna - Poynting Antennas is backordered and will ship as soon as it is back in stock.
Click here to inquire about pricing or to become an authorized reseller of this product.
The MIMO-4-15 is a high-performance 5-in-1 multi-frequency antenna housed in a single enclosure, providing two cellular MIMO antennas, two dual-band Wi-Fi antennas, and a GPS/GLONASS antenna. Designed for LTE/4G and emerging 5G networks, it supports a wide frequency range from 617 MHz to 6000 MHz, ensuring compatibility with various operators and future cellular technologies up to 6 GHz.
Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 6 GHz, covering LTE and 5G applications. Advanced 2x2 Cellular MIMO Technology: Enhances signal strength, pattern diversity, and omnidirectional coverage.
Dual-Band 2x2 MIMO Wi-Fi Antennas: Two independent Wi-Fi antennas support concurrent 2.4 GHz and 5–7.2 GHz operation for improved wireless performance. Integrated GPS/GLONASS Antenna: High-performance active GPS system for accurate positioning.
Optimised for Transportation & Marine Use: Designed to meet the demanding requirements of commercial vehicles, marine, and industrial applications. Futureproof Connectivity: Ensures long-term compatibility with evolving cellular, Wi-Fi, and IoT applications.
Superior Radiation Performance: Engineered for an optimal balance between omnidirectionality, diversity, and signal propagation. The MIMO-4-15 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.
Key Features
- 5-in-1 High performance multi frequency automoitve antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 2x2 MIMO LTE/5G, 2x2 MIMO Wi-Fi & GPS/GLONASS
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation

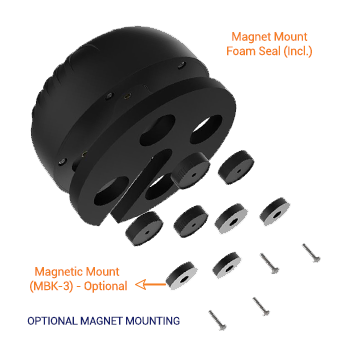

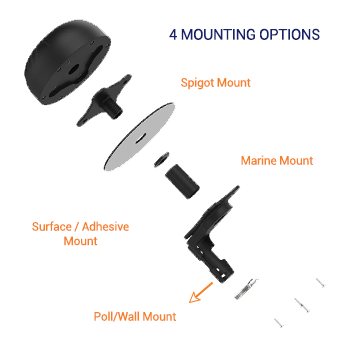

- Multi mounting options for ease of installation
Ideal Applications
- Transport broadband
- Wi-Fi distribution
- automation
- telemetry for busses
- utility
- trucking
- public safety vehicles
- Industrial factory automation
- robotic machinery
- other M2M systems telemetry
- Farming & Agricultural automation such as M2M & IoT
- Broadband cellular to Wi-Fi distribution for Marine/Boats
- Mining vehicles & machinery communications
- telemetry
- automation (M2M & IoT)
Frequency Band
This antenna operates in the 617 - 7200 MHz band.
Wi-Fi Standards
Wi-Fi 3 (802.11g)| Wi-Fi 4 (802.11n)| Wi-Fi 5 (802.11ac)| Wi-Fi 6 (802.11ax)| Wi-Fi 6E (802.11ax)
