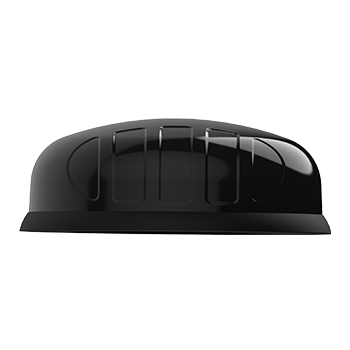

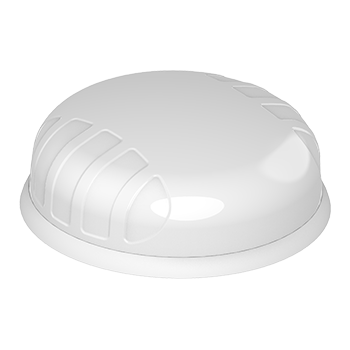

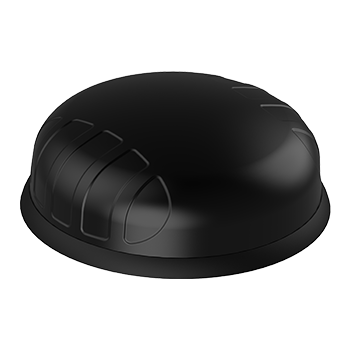

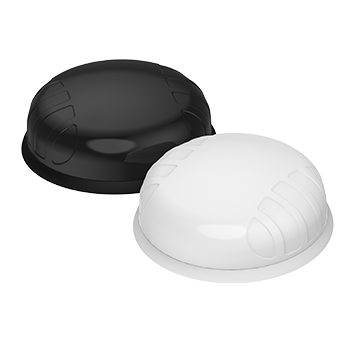

Poynting PUCK-5 | 5-in-1 Transportation & IoT/M2M Antenna

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-5 is a 5-in-1 antenna system within a single enclosure, offering reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.

Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks. Dual-Band 2x2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.

High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC. Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.

Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation. Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.

Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance. The PUCK-5 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity.

For SISO applications, other derivatives in the PUCK range may be more suitable.

Key Features

• 5-in-1 5G high performance multi frequency antenna
• Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi-6e/
• Wi-Fi-7/LoRa/Bluetooth
• 5G (2x2 MIMO), Dual-band Wi-Fi (2x2 MIMO), GPS/GLONASS
• Ultra-wideband coverage from 617 – 6000 MHz for cellular
• Robust, vandal resistant and waterproof (IP 69K)
• Ideal for transportation, marine and IoT/M2M use

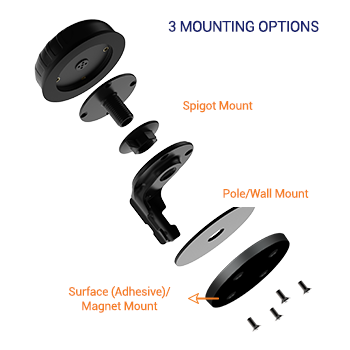

• Ultra-versatile mounting options for easy installation

Ideal Applications

• Smart utilities: Smart power
• Gas & Water Metering
• Smart Buildings: Climate control
• access control
• security
• irrigation
• Industrial factory automation
• robotic machinery
• other M2M systems
• Digital Signage
• Warehouses & Logistic systems
• Transport (Buses
• Utility & Public Safety)
• Mining Vehicles & Machinery communications
• telemetry
• automation (M2M & IoT)
• Agricultural machinery
• Marine: small boats
• yachts near to coastlines or inner waters

Frequency Band

This antenna operates in the 617 - 6000 MHz band.

Wi-Fi Standards

Wi-Fi 3 (802.11g)| Wi-Fi 4 (802.11n)| Wi-Fi 5 (802.11ac)| Wi-Fi 6 (802.11ax)| Wi-Fi 6E (802.11ax)| Wi-Fi 7 (802.11be)
