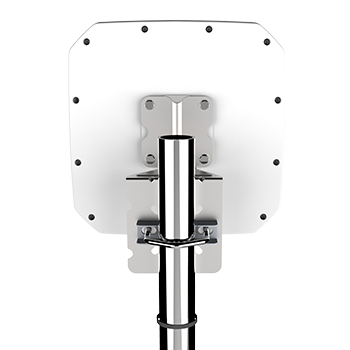

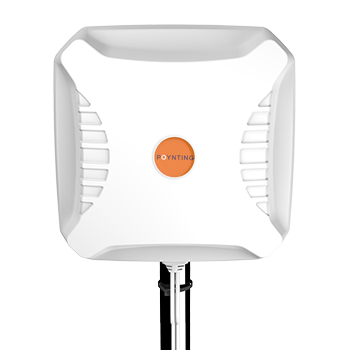

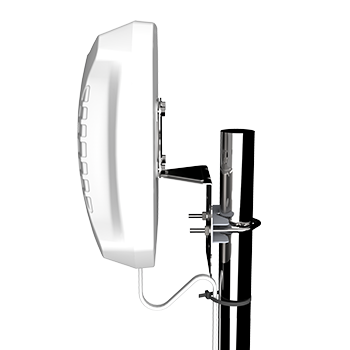

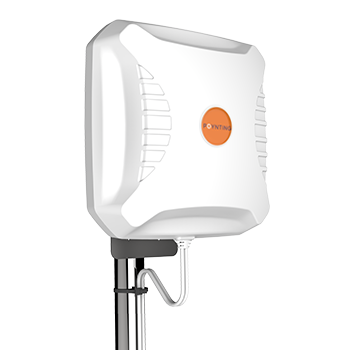

Poynting XPOL-2-5G | X-Polarised, High Gain, Uni-Directional 5G/LTE Antenna (2X2 MIMO)
Poynting XPOL-2-5G | X-Polarised, High Gain, Uni-Directional 5G/LTE Antenna (2X2 MIMO) - Poynting Antennas is backordered and will ship as soon as it is back in stock.
Click here to inquire about pricing or to become an authorized reseller of this product.
The XPOL-2-5G is Poynting’s third-generation “V3” version of its popular Cross Polarised (XPOL) 2x2 MIMO antenna. While the enclosure retains the familiar look of the second-generation “V2,” the internal design has been completely re-engineered using advanced metamaterial technology.
The incorporation of Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration significantly enhances bandwidth and gain. Expanded Frequency Coverage: Now includes the 3400 – 4200 MHz bands, in addition to 617 – 960 MHz, 1710 – 2170 MHz, and 2300 – 2700 MHz.
Enhanced Gain Performance: Delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model. Advanced Metamaterial Technology: Uses Artificial Magnetic Conductors (AMC) for improved signal efficiency and performance.
Optimised Radiation Patterns: Well-controlled radiation patterns enhance overall antenna effectiveness. 2x2 MIMO Configuration: Provides better throughput, stability, and signal quality for 2G, 3G, 4G, and 5G networks.
The XPOL-2-5G represents a major upgrade in antenna technology, offering exceptional performance improvements while maintaining its proven reliability. It is an ideal solution for next-generation 5G and LTE deployments.
Key Features
- New advanced metamaterial technology
- Exceptional performance over the main 4G/5G bands
- High Gain for the antenna size
- Wideband 2x2 MIMO 4G/5G antenna
- Backwards compatible 2G/3G/4G/LTE/5G antenna
- Two cross polarised antennas in one enclosure for optimal LTE performance
- IP65 weather/dust and vandal resistant enclosure
Ideal Applications
- Outdoor antenna for Fixed Wireless Access (FWA)
- Consumer LTE/5G internet connectivity
- Industrial & Commercial LTE/5G deployments
- Urban
- rural household reception enhancement
- Agricultural & Farming LTE/5G data distribution
- Power
- Energy & Water telemetry access
- Oil & Gas communication systems
- Municipal & Government systems
- Repeaters & coverage enhancement amplifiers
Frequency Band
This antenna operates in the 617 - 4200 MHz band.
Wi-Fi Standards
Wi-Fi 3 (802.11g)
