SMW-UMB - Cellular, WiFi
SMW-UMB - Cellular, WiFi - Combo Antennas is backordered and will ship as soon as it is back in stock.
Click here to inquire about pricing or to become an authorized reseller of this product.

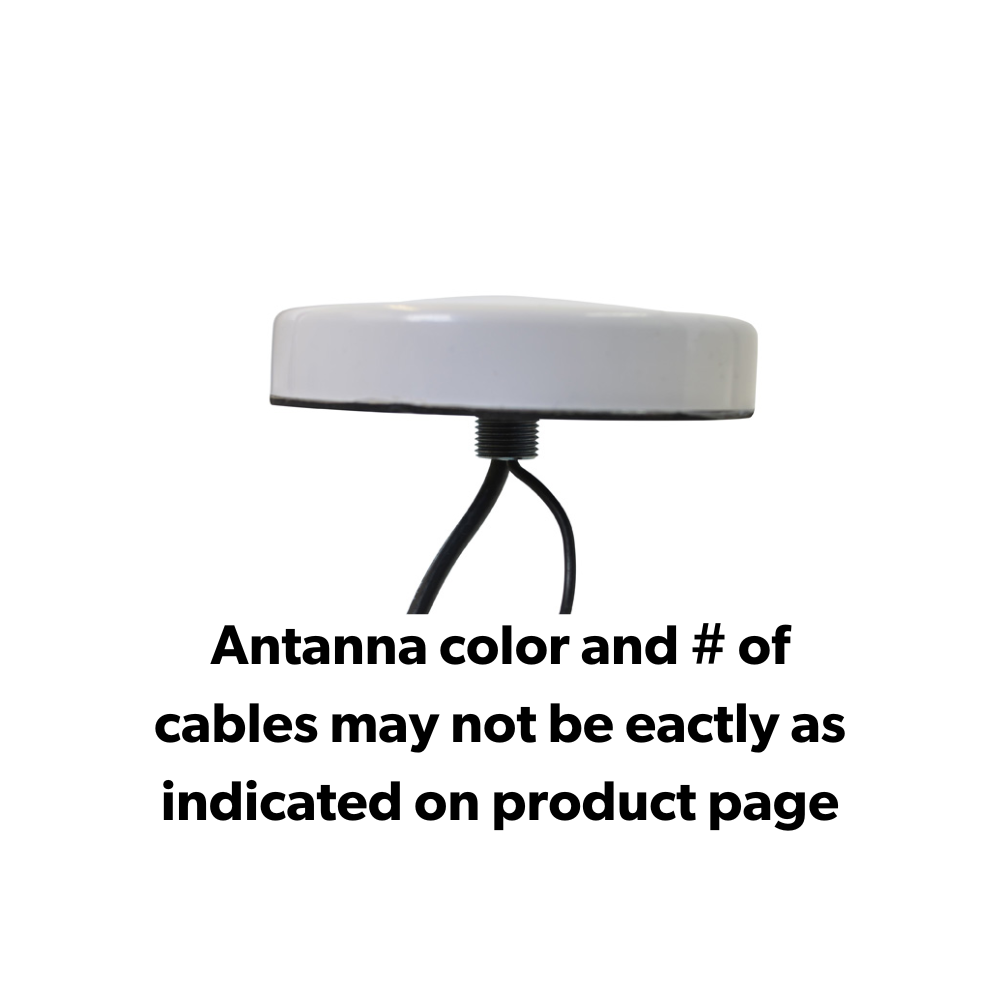

The SMWG-UMB Transit Wireless Antenna features 3 elements in one radome, measuring 4.2″ D x 3.2″ H (107 mm x 81 mm).
The Cellular element covers applications from800 MHz – 2.7 GHz, including850 & 1900 GSM/CDMA bands, 1.7 & 2.1 AWS bands,as well asXLTE, LTE-A, Spark and WiMAX 2.5.
However, the SMWG-UMB doesNOTcover 4G LTE at 700 MHz; furthermore, please see theSMWG-305.
The second element covers WiFi at2.4 GHzand the remaining element covers GNSS. For WiFi coverage on both2.4 & 5 GHz, please seeSMWG-301.
Finally, the third element covers GNSS.GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
Mount this antenna to any vehicle, cargo container or trailer. SMWG-UMB is available in either surface-mount or mag-mount models. SpecifyMGWG -UMBfor the mag-mount version.
